商品の詳細:
|
| Feature: | Wear Resistance, high precision | Size: | Customized |
|---|---|---|---|
| Coating: | TiN, TiCN, TiAlN, AlTiN | Material: | Tungsten Carbide |
| Stock: | Available | Hardness: | HRA 92-94 |

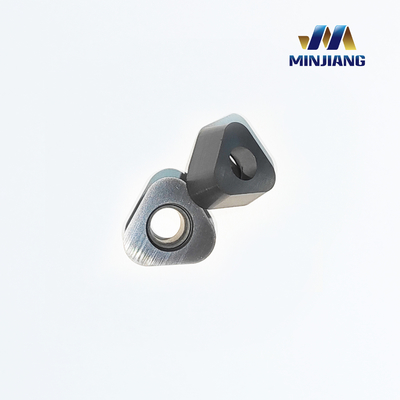

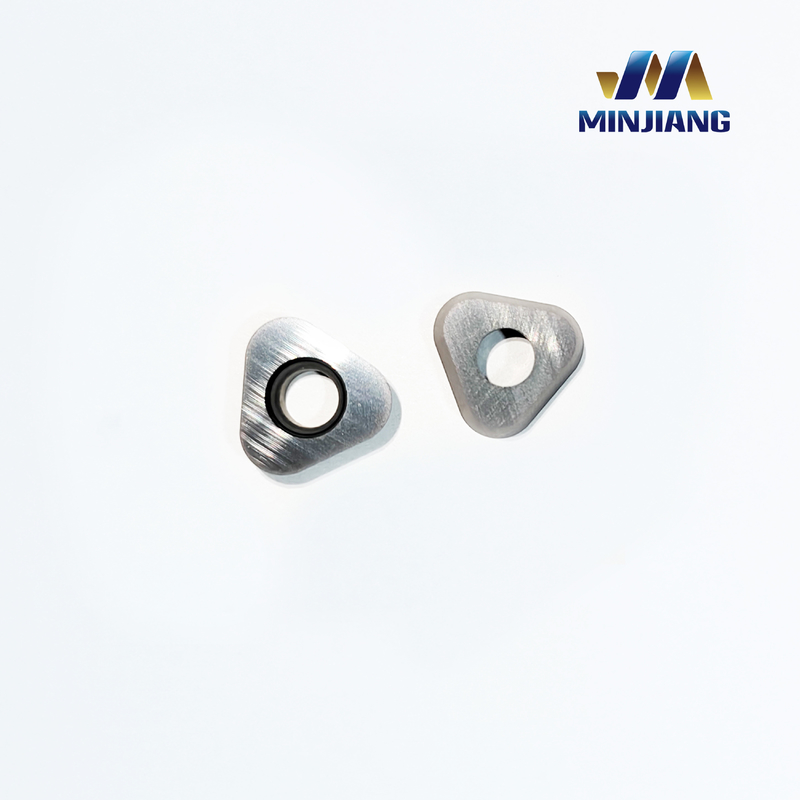

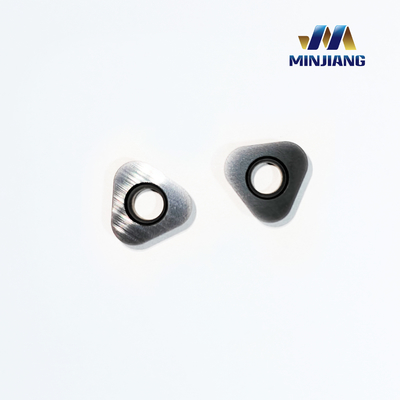

Ultra-Wear Resistant Milling Insert - 5X Longer Life vs Standard Carbide
Carbide profile milling tools, composed of high-hardness tungsten carbide (WC) with cobalt/nickel binders sintered via powder metallurgy, deliver exceptional hardness, strength, and heat resistance. Their unique round-insert design eliminates weak corners, enhancing vibration dampening and allowing higher speeds/feeds while minimizing chipping risks for superior machining stability and tool life.
Material
According to the different binder contents, cemented carbide can be divided into different grades, such as YG, YT and YW . These grades have different performance characteristics and are suitable for different processing materials and processing conditions.
| Grade | WC(%) | TIC(%) | TaC/NbC(%) | Co(%) | Density(t/m³) | Thermal conductivity(W/m·K) | Hardness(HRA) | Flexural strength(/GPa) |
| YG3X | 97 | - | <0.5 | 3 | 14.9-15.3 | 87.92 | 91.5 | 1.08 |
| YG6X | 93.5 | - | 0.5 | 6 | 14.6-15.0 | 75.55 | 91 | 1.37 |
| YG6 | 94 | - | - | 6 | 14.6-15.0 | 75.55 | 89.75 | 1.42 |
| YG8 | 92 | - | - | 8 | 14.5-14.9 | 75.36 | 89 | 1.47 |
| YG10C | 90 | - | - | 10 | 14.3-14.9 | 75.36 | 88 | 1.72 |
| YT30 | 66 | 30 | - | 4 | 9.3-9.7 | 20.93 | 92.5 | 0.88 |
| YT15 | 79 | 15 | - | 6 | 11.0-11.7 | 33.49 | 91 | 1.13 |
| YT14 | 78 | 14 | - | 8 | 11.2-12.0 | 33.49 | 90.5 | 1.77 |
| YT5 | 85 | 5 | - | 10 | 12.5-13.2 | 62.80 | 89 | 1.37 |
| YG6A | 91 | - | 3 | 6 | 14.6-15.0 | - | 91.5 | 1.37 |
| YG8A | 91 | - | 1 | 8 | 14.5-14.9 | - | 98.5 | 1.47 |
| YW1 | 84 | - | 4 | 8 | 12.8-13.3 | - | 91.5 | 1.18 |
| YW2 | 82 | - | 4 | 8 | 12.6-13.0 | - | 90.5 | 1.32 |
Product Advantages
High Hardness and Wear Resistance: Tungsten carbide has a high hardness level and excellent wear resistance, making it ideal for use in cutting tools. This means that tungsten carbide cutting tools can last much longer than traditional steel tools, resulting in significant cost savings.
Excellent Toughness: Tungsten carbide is also known for its excellent toughness, which means it can withstand high stress and impact loads. This makes it ideal for use in cutting tools that need to withstand heavy usage and challenging cutting conditions.
High Thermal Conductivity: Tungsten carbide has a high thermal conductivity, which means that it can dissipate heat generated during the cutting process effectively. This property reduces the risk of damage to the cutting edge and ensures longer tool life.
FAQ
1. Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock.Or it is 20-35 days if the goods are not in stock, it is according to quantity.
2. Q: What is your minimum order quantity?
A: Our minimum order quantity will vary depending on the product.
3. Q: What is the best way to contact you?
A: You can contact us by email, telephone or online chat.
