商品の詳細:
|
| コンテンツ: | Wc+Co | 順序: | 裁判命令を承認する |
|---|---|---|---|
| 検査: | 100% | 標準または非標準: | 標準または非標準 |
| 表面の仕上げ: | 磨き コーティング | 温度: | 高温抵抗 |
| ハイライト: | Precision Machining Tungsten Carbide Insert,High-Speed Tungsten Carbide Insert,Customization Options Carbide Threading Insert |
||

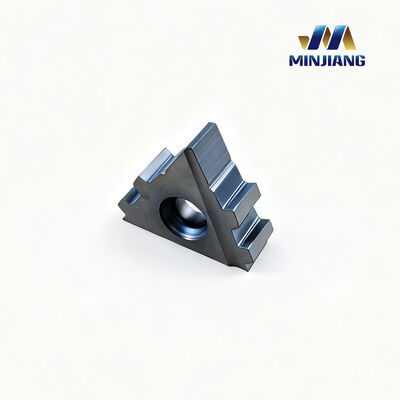

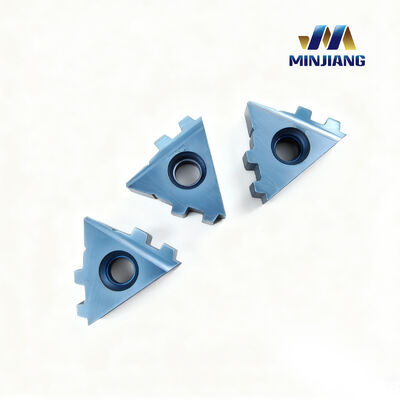

Wear-Resistant Tungsten Carbide Insert for Oil Pipe Threading
Description
Carbide threading inserts are precision tools essential for high-accuracy machining. Made from ultra-hard, wear-resistant carbide, they deliver extended service life and consistent cutting performance. Designed for use on lathes and machining centers, these inserts efficiently produce precise threads on various materials—including steel, stainless steel, cast iron, and non-ferrous metals. Their robust construction and optimized geometry make them a reliable choice for industries demanding durability and repeatability in threading operations.
Materials
The selection of thread cutting insert materials varies depending on the workpiece material to achieve better cutting performance.
Some optional Carbide Grade:
| Metal Grade | performance and use |
|
MC1 |
MC1 exhibits exceptional matrix red hardness and remarkable toughness, making it ideally suited for processing with high-efficiency threading machines. Furthermore, it is perfectly compatible with the threading requirements of oil pipes, casings, and couplings that belong to medium steel grades and secondary high steel grades, encompassing materials like J55, K55, N80, L80. |
| MC2 |
MC2 boasts high matrix strength, excellent red hardness, and good impact resistance. It is suitable for high-efficiency threading machine processing of medium to high steel grade oil pipes, casings, and coupling threads, such as N80 and P110. |
| MC3 |
MC3 boasts good overall mechanical properties in its matrix, along with stable cutting performance. It is suitable for high-efficiency threading machine processing of oil pipes, casings, and coupling threads that belong to low, medium, and secondary high steel grades, such as H40, J55, M65, C75, N80, and similar specifications. |
| P35 |
P35 utilizes a matrix with high strength and excellent red hardness, making it suitable for processing the threads of drill pipes, oil drilling collars, sucker rods, and other related equipment. |
| YT15 |
Depending on the specific application, it can be coated or uncoated, and possesses good red hardness and toughness. It is suitable for use in the manufacturing of specialized chip breakers for thread cutting combs and other cutting tools. |
| S Material |
Exhibits excellent wear resistance and high-temperature red hardness, making it suitable for the internal threading of medium to high alloy steels. |
Product Specification
| Shape | Model | Number of cutting edges | Number of teeth per edge | IC | Number of threads per inch |
| Triangle | 10N2-4 | 2 | 4 | 10.17 | 10 |
| Triangle | 8N2-3 | 2 | 3 | 10.17 | 8 |
| Triangle | 10W2-4 | 2 | 4 | 10.17 | 10 |
| Triangle | 8W2-3 | 2 | 3 | 10.17 | 8 |

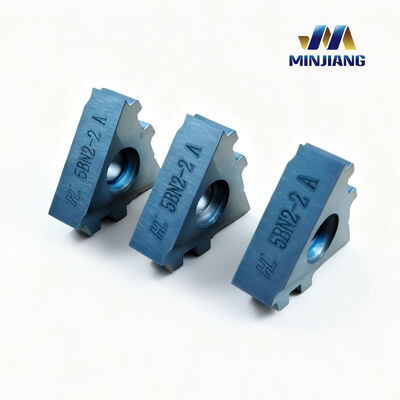

| Triangle | 5BN2-2 | 2 | 2 | 10.17 | 5 |
Competitive Pros
Versatile Application: Capable of machining a wide range of materials, from steel and cast iron to non-ferrous metals.
Exceptional Heat Resistance: Maintains structural integrity and cutting performance even under elevated temperatures.
Extended Tool Life: Manufactured from premium-grade carbide, ensuring outstanding wear resistance and reduced replacement frequency.
Superior Surface Finish: Precision-ground cutting edges deliver excellent surface quality, minimizing the need for secondary finishing.
High Efficiency: Engineered for consistent performance, enabling optimized machining cycles and improved productivity.
Customization Options: Available in multiple geometries, sizes, and specialized coatings to meet specific application requirements.
High-Speed Suitability: Supports high-speed machining operations while maintaining precision and tool integrity.
Supply At Source
Access to the Latest Technology: Manufacturers are at the forefront of innovation and technology. By purchasing directly, you gain access to the latest advancements and product enhancements, ensuring you use the most efficient and effective tools available.
Reliable Supply Chain: Direct purchasing helps ensure a reliable and consistent supply of inserts. Manufacturers can provide accurate lead times and are less likely to experience the supply chain disruptions that can affect distributors.
Expert Support and Service: Manufacturers offer specialized knowledge and expertise about their products. Direct access to technical support can help with troubleshooting, application advice, and optimizing the use of the inserts.
A: Yes, carbide threading inserts are ideal for high-volume production due to their durability and ability to maintain performance over long production runs.
2. Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. Or it is 20-35 days if the goods are not in stock, it is according to quantity.
3. Q: How do carbide threading inserts improve machining efficiency?
A: Carbide threading inserts offer superior hardness and wear resistance, leading to longer tool life, reduced downtime for tool changes, and consistent high-quality machining results.
